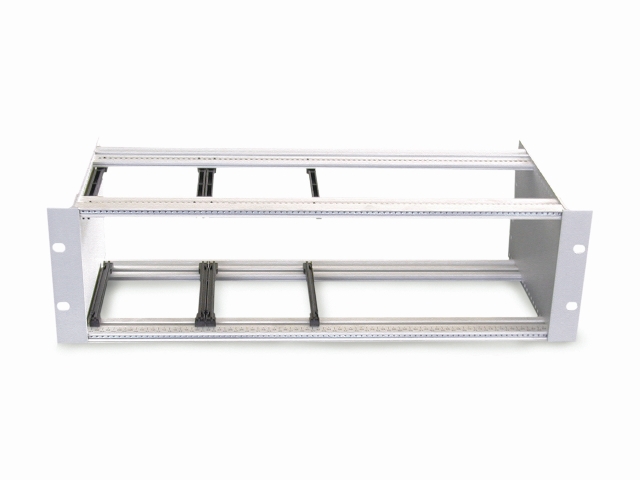

SR-100 19" standard version subrack

Standard and customisable rack cabinets

SR-100 19" standard version subrack

Ask for information

Data sheet and included components

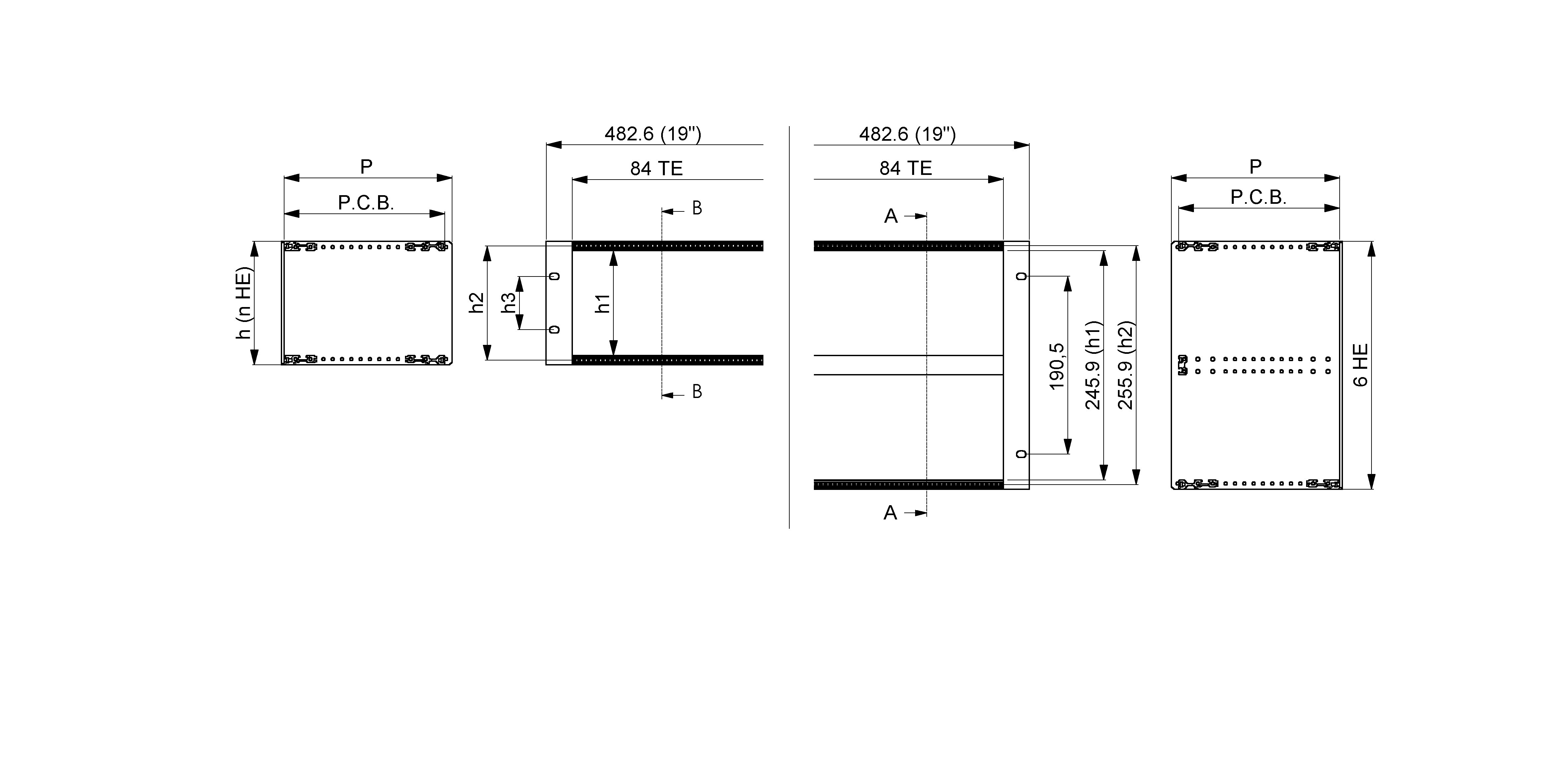

order number HE h (mm) h1 (mm) h2 (mm) h3 (mm) PCB Depth P (mm)
SR-100-01 3 132,50 112,50 122,50 57,15 160 180
SR-100-02 3 132,50 112,50 122,50 57,15 220 240
SR-100-03 3 132,50 112,50 122,50 57,15 280 300
SR-100-05 3 132,50 112,50 122,50 57,15 400 420
SR-100-10 6 265,80 245,90 255,90 190,50 160 180
SR-100-11 6 265,80 245,90 255,90 190,50 220 240
SR-100-12 6 265,80 245,90 255,90 190,50 280 300
SR-100-14 6 265,80 245,90 255,90 190,50 400 420

  1. front beam
  2. side
  3. 19” fixing support bracket
  4. M 2.5 threaded bar
  5. rear beam
  6. (*) midbeam
  7. (**) card guide support
  8. fixing screws



(*) supplied with 19” subrack H=6U

(**) supplied with 19” depth subrackà ≥280

  • 19” extruded aluminium beams and support brackets
  • Stainless steel sides
  • Galvanized steel threaded rod and card guide support -
